CAD Design & Cutting

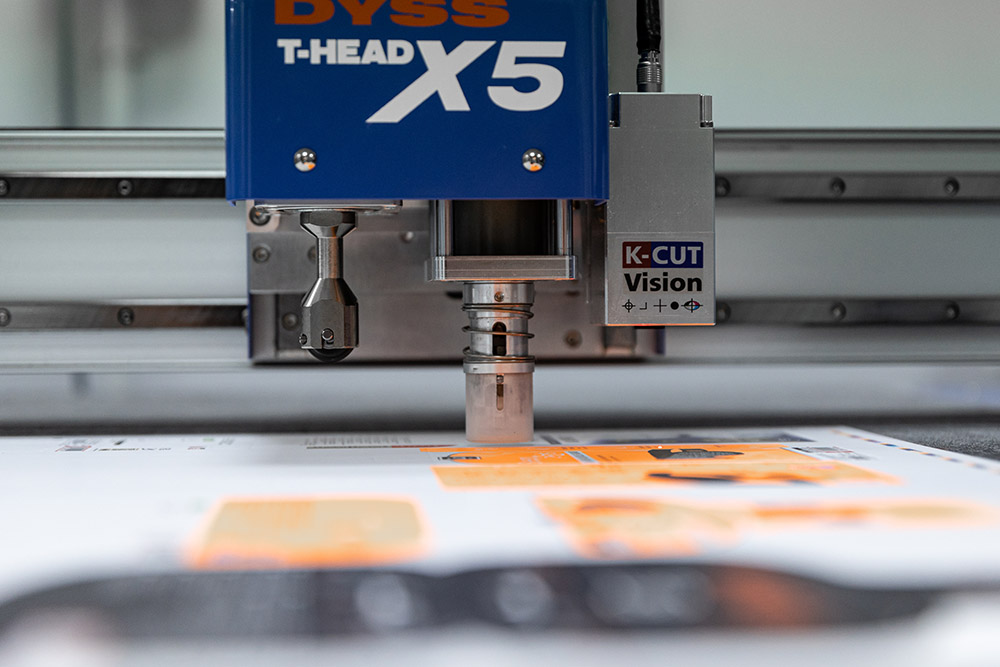

CAD (Computer Aided Design) software is an essential part of our packaging design process. Our skilled structural packaging engineer uses the CAD software and automated laser cutting table to create accurate designs and then cut and crease samples for client approval.

CAD Process for Printed Packaging - Step 1

1. Starting with your product and guidance, we can help you create a brief for us to work from.

CAD Process for Printed Packaging - Step 2

2. A sketch with dimensions is a great starting point.

CAD Process for Printed Packaging - Step 3

3.Detail specific requirements for the packaging.

4. Board choice can be heavily influenced by the type of construction and final use, so we'll guide where needed.

CAD Process for Printed Packaging

5.We can then, create the initial construction design on the CAD software.

CAD Process for Printed Packaging - Step 5

6. Cut samples of the design on the CAD machine and make up to completion.

CAD Process for Printed Packaging

7. Supply samples to you to test, review, and discuss. Any changes can be made and re-sampled if required.

See our CAD machine in action.

Our CAD team are on hand to help with the design and prototyping of your projects, call us today on 01628 810523 or submit an online quote request.
